SANOC
SANway Optoelectronics tech. Corp.
SANOC社は、2000年5月に設立され、台湾で開発及び製造している光ファイバーに特化したメーカーです。
特に同メーカーは、自社工場を保持しているため、価格的にも自信があります。
品質面は、R&Dで豊富な経験を持っており、ユーザー様の要求に応える柔軟な設備と能力を保有しております。
製品として、広範囲のコンポーネントがあり、SFP、SFP+、QSFP、XFP、CWDM、BI-DIを含む光トランシーバー、1x9ファイバー、SFF、GEPON、AOC、DACなどで多品種あります。
日本においては、メディアコンバータ・スイッチといったネットワーク機器メーカー様へも販売実績があります。

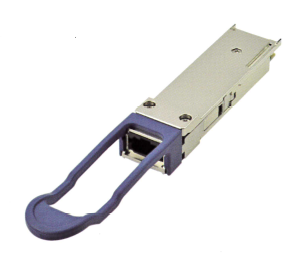

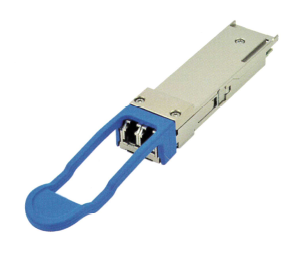

【100G QSFP28 SR4 Transceiver】
- 4 channel transceiver modules transmission up to 25Gbps per channel
- Support 40GE, 56G & 100G FDR data rate
- 4 channel 850nm VCSEL array
- 4 channel PIN photo detector array
- Internal CDR circuit on both receiver and transmitter channel
- Low power consumption < 2.5W
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
【100G QSFP28 CWDM4 Transceiver】
- 4 channel transceiver modules transmission up to 25Gbps per channel
- 4x25.78Gbps DFB-based CWDM Uncooled transmitter: 1271, 1291, 1311 and 1331nm
- Internal CDR circuit on both receiver and transmitter channel
- Low power consumption < 3.5W
- Hot-pluggable QSFP form-factor
- Up to reach 2km & 10km for G.652 SMF[with KR4 FEC]
【100G QSFP28 LR4 Transceiver】
- 4 channel transceiver modules transmission up to 25Gbps per channel
- 4x25.78Gbps DFB-based LAN-WAN cooling transmitter
- Internal CDR circuit on both receiver and transmitter channel
- 4 channel PIN ROSA
- Hot-pluggable QSFP form-factor
- Low power consumption < 3.5W
- Up to reach 10km for G.652 SMF
- Duplex LC receptacles
【100G QSFP28 PSM4/Pigtail Transceiver】
- 4 channel transceiver modules transmission up to 25Gbps per channel
- 4x25.78Gbps DFB-based 1310nm uncooled transmitter
- Internal CDR circuit on both receiver and transmitter channel
- 4 channel PIN ROSA
- Compliance to 100G PSM4 MSA
- Hot-pluggable QSFP form-factor
- Low power consumption < 3.5W
- Up to reach 2km & 10km for G.652 SMF[with KR4 FEC]
【25G SFP28 SR Transceiver for 5G LTE】
- Hot-pluggable SFP28 form-factor
- Supports up to 28Gbps data rate
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- 850nm VCSEL laser and PIN photo-detector
- Internal CDR circuit on both transceiver and receiver channel
- Duplex LC receptacle
【25G SFP28 LR Transceiver for 5G LTE】
- Hot-pluggable SFP28 form-factor
- Supports up to 28Gbps data rate
- Maximum link length of 10km on SMF
- Internal CDR on both transceiver and receiver channel
- Duplex LC receptacle

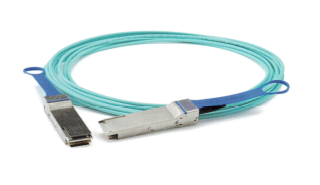

【100G QSFP28 AOC(Active Optical Cable)】
- 4 channel 850nm 25G VCSEL array transmission data rate up to 25.78Gbps per channel
- Internal CDR circuit on both receiver and transmitter channel
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
【40G QSFP+ AOC(Active Optical Cable)】
- Full duplex 4 channel 850nm parallel AOC transmission data rate up to 10.3Gbps per channel
- Maximum link length of 300m on OM3 MMF and 400m on OM4 MMF
- Low power consumption < 1.5W

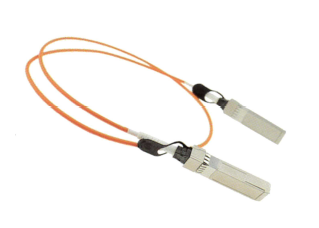

【25G SFP28 AOC(Active Optical Cable)】
- Hot-pluggable SFP28 form-factor
- Supports 28Gbps data rate
- Internal CDR circuit on both receiver and transmitter channel
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Power dissipation < 1W
【10G SFP+ AOC(Active Optical Cable)】
- 4 channel 850nm 25G VCSEL array transmission data rate up to 25.78Gbps per channel
- Internal CDR circuit on both receiver and transmitter channel
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
【100G QSFP28 to 4 x 25G SFP28 AOC(Active Optical Cable)】
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Internal CDR on both receiver and transmitter channel
- Digital diagnostic functions are available via I2C interface
- All-metal housing for superior EMI performance
【40G QSFP+ to 4 x 10G SFP+ AOC(Active Optical Cable)】
- Up to 100m on OM3 MMF
- All-metal housing for superior EMI performance
【10G/40G/100G DAC(Direct Attach Cable)】
- 100G QSFP28/ 40G QSFP+ Copper Direct-attach cable
- 100G QSFP28 to 4 x 25G SFP28 Copper Fanout cable
- 40G QSFP+ to 4 x 10G SFP+ Copper Fanout cable
- Link distance from 0.5m up to 7m
- Low insertion loss

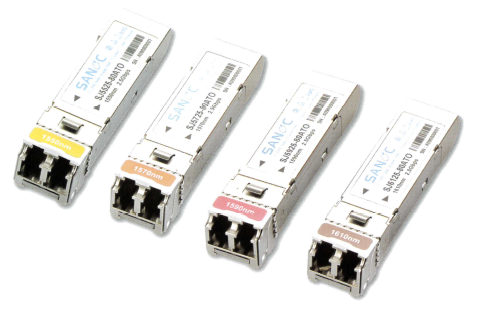

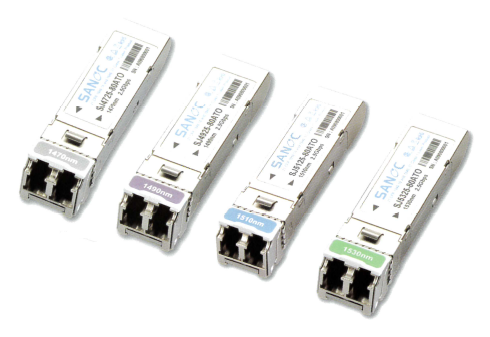

【SFP+ Duplex CWDM/DWDM Transceiver】
- SFP SFF-8472 MSA Compliant
- Internal / External calibration function supported
- 18 channels 1270nm ~ 1610nm supported
- Multi-rate operation up to 10Gbps
- Isolator integrated with low relative intensity noise
- High sensitivity APD Receiver
- FTTX application
- Lead free and RoHS compliant

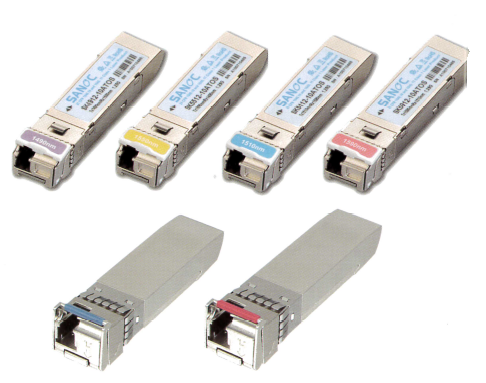

【SFP+ Bi-Directional CWDM Transceiver】
- SFP SFF-8472 Rev.11.0 MSA Compliant
- Internal / External calibration function supported
- Single fiber Bi-Directional LC connector
- Dual-rate operation to 1G / 10Gbps
- Bandpass filter built-in for 1350nm / 1490nm & 1450nm / 1590nm
- Isolator integrated with low relative intensity noise
- High sensitivity APD receiver
- Lead free and RoHS compliant
【CSFP(Compact Small Form-Factor Pluggable) Transceiver】
- Compliant with CSFP MSA Rev.2.0
- Half size of conventional SFP transceivers
- Two Bi-Directional transceivers in one SFP package
- Compliant with 100base / 1000base ethernet
- Wavelength selectable 1310nm / 1490nm and 1310nm / 1550nm
- Commercial and industrial temperature available
- Internal / External calibration function supported
【GBE/Fast Ethernet Duplex SFP Transceiver】
- SFP SFF-8472 MSA compliant
- Industrial operation -40℃ ~ +85℃
- Support distance up to 200km
- 100Base Fast /1000Base Gigabit ethernet compliant
- Internal / External calibration function supported
- Lead free and RoHS compliant

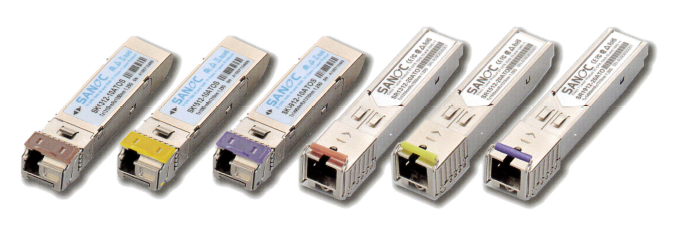

【Bi-Directional SFP Transceiver】
- SFP SFF-8472 MSA compliant
- Internal / External calibration function supported
- 100Base Fast /1000Base Gigabit ethernet compliant
- Wavelength selectable 1310nm/1490nm, 1310nm / 1550nm, 1490nm / 1550nm and 1510nm / 1590nm
- SC / LC connector supported
- Lead free and RoHS compliant
【1GBase-T Copper SFP Transceiver】
- Hot-pluggable SFP footprint
- Low power dissipation
- 10, 100, 1000 BASE-T operation in host systems with SGMII interface
- 1000 BASE-T operation in host systems with SERDES interface
- Compact RJ-45 connector assembly
- Up to 100m transmission over Cat5 UTP cable
- SFP MSA compliant
【10GBase-T Copper SFP+ Transceiver】
- Hot-pluggable SFP footprint
- Low power dissipation
- Auto-negotiation function implemented
- Up to 30m transmission over Cat6a/7 cable
- IEEE 802.3az compliant
- SFP MSA compliant

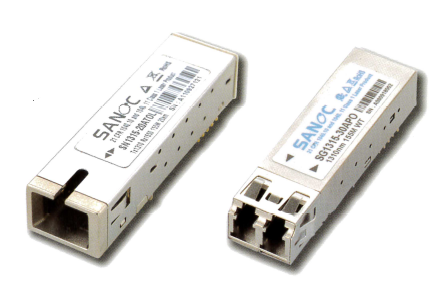

【SFF(Small Form-Factor) Transceiver】
- SFF MSA compliant
- RJ-45 size, 2x5 / 2x10 pin industrial package
- Duplex / Bi-Direction / Dual Tx / Dual Rx supported
- 155M/622Mbps/1.25Gbps/2.48Gbps SDH / SONET compliant
- Fast / Gigabit ethernet & fiber channel compliant
- AC / AC coupled signal input / output
- LVTTL transmitter disable / signal detection
- Lead free and RoHS compliant

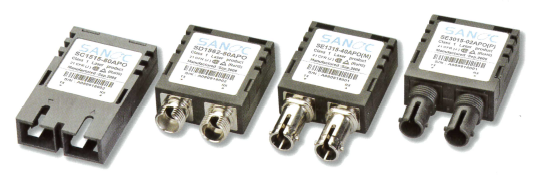

【Duplex 1x9 Transceiver】
- State-of-the-art wide-temperature operation -40℃ ~ +100℃ and up
- Industrial operation -40℃ ~ +85℃
- High quality & cost effective & low power consumption
- 1x9 standard footprint
- 100base / 1000base ethernet compliant
- SC / FC / ST connector supported
- 18 channels CWDM wavelength supported
- Class 1 laser product complies with EN 60825-1
【Bi-Di 1x9 Transceiver】
- Wavelength selectable 1310nm/1490nm and 1310nm/1550nm
- Asymmetric 84Mbps / 155Mbps / 1.25Gbps / 2.5Gbps for security video application
- High quality & cost effective & low power consumption
- Bi-Di 1x9 standard footprint
- 100base / 1000base ethernet compliant
- SC / FC / ST connector supported
- Class 1 laser product complies with EN 60825-1

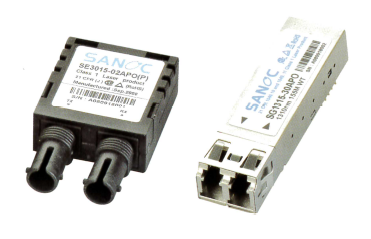

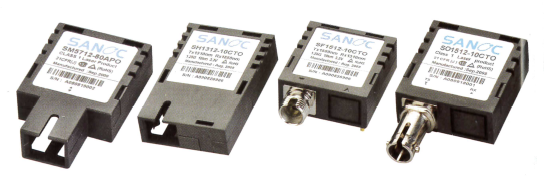

【DC ~2Mbps 1x9 & 2x5 SFF Transceiver】
- 1x9 & 2x5 pin stangard footprint selectable
- SC / FC / ST / LC connector supported
- Low power dissipation
- Supports multi-mode or single mode fiber
- Solution for ultra low-spped industrial RS232/485 communication networks

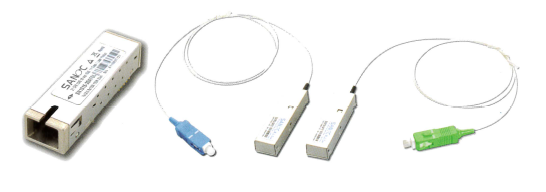

【GPON / EPON ONU / OLT Transceiver】
- ITU-T G.984.2/984.5 Class B+ compliant
- IEEE 802.3ah PX-10 / PX-20 compliant
- Burst / Continuous mode supported
- SFF package for ONU
- SFP OLT supported
- Class 1 laser product complies with EN 60825-1
【10G xPON ONU BOSA】
- BOSA on board solution available
- ITU-T G 9807.1 compliant
- Burst / Continuous mode supported
- Customized specification and pinout
- Class 1 laser product complies with EN 60825-1
- Bi-directional & triplexer optical Sub-assembly for design-in application
- 1270nm burst-mode 9.953Gbps DFB transmitter
- 1577nm continuous-mode 9.953Gbps APD receiver

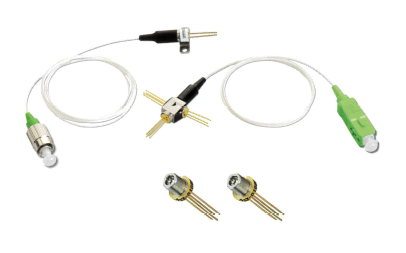

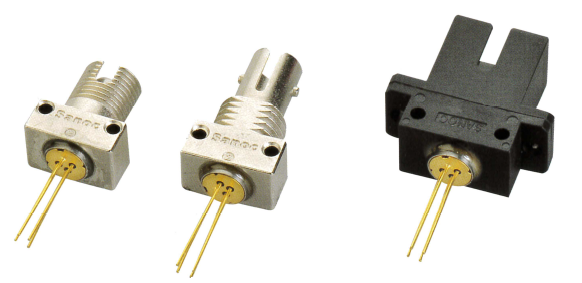

【CDMA Analog/Digital Lase Module】
- Hermetically sealed uncooled 1310nm / 1550nm fabry-perot(FP) MQW laser diode
- Hermetically sealed uncooled 1310nm / 1550nm Distributed feedback(DFB) MQW laser diode
- 18 channels 1270nm ~ 1610nm supported
- Analog application for bandwidth up to 10GHz with high IMD2 / IMD3 performance
- SC / FC / ST coaxial PC / APC pigtail / receptacle package
- Lead free and RoHS compliant

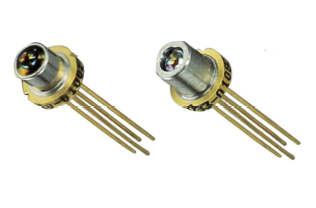

【FP / DFB LD & PIN-TIA in TO56 / TO46】
- Fabry-perot(FP) laser
- Distributed-feedback(DFB) laser
- Bandwidth from 1Gbps ~ 25Gbps
- Integrated monitoring photodiode
- Wide operating temperature range
- TO56 / TO46 fully burn in and testing

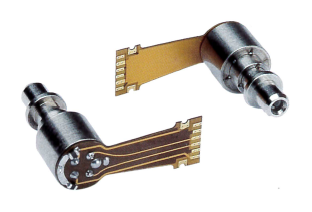

【10G / 25G TOSA / ROSA】
- LC receptacle with single mode fiber stub
- FPC electrical interface
- Cost effective and high reliability
- Data rate up to 25Gbps
- Integrated monitoring photodiode
- RSSI current output operates from sensitivity to overload
