EVERPRO
EverPro Technologies Company Ltd.
従来のメタルと光ファイバを使ったハイブリッドケーブルで、細くて軽く、長距離伝送が可能なアクティブ光USB3.1ケーブルを製造している中国に本社があるメーカーです。
USB2.0/1.1をUSB3.0に変換する機能を内蔵したドングルやハブも用意されており、最大100mに対応した光ファイバだけを使ったアクティブ光USB3.1ケーブルと一緒に使うことで更なる長距離伝送が可能です。
お 知 ら せ
パシフィコ横浜にて開催されている「OPIE'23」にてお配りしているリーフレットはこちらからご覧になれます。
主 要 製 品

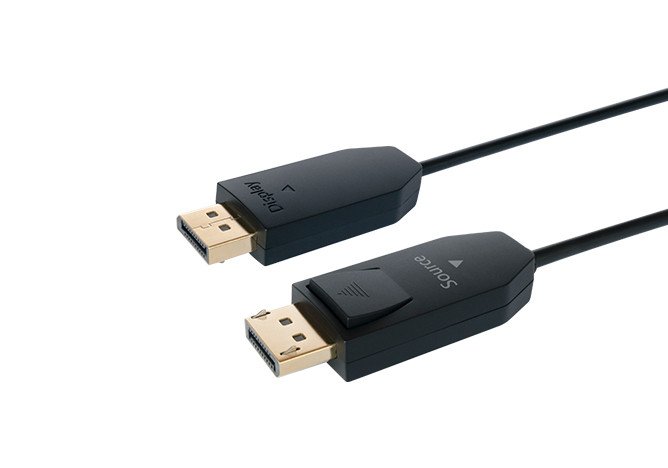

【Display Port: EPD2 DP2.0-AOC】
- 50 meters lossless transmission
- Complies with DP (DisplayPort) 2.0 standard
- Support lossless transmission of 8K/4K UHD videos
- Support Panel Replay
- 40Gbps Band Width
- High resistant with EMI and RFI
- No need external power

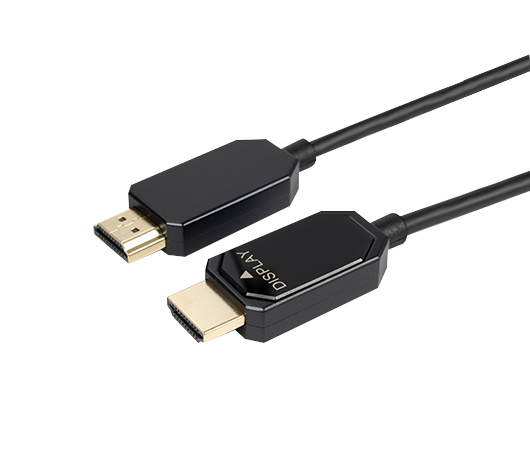

【HDMI: H1Sm-01 HDMI2.1-AOC】
- HDMI: 48Gbps, 8K 60Hz
- Low Power
- Max70m, OD 4.4mm
- Good flex resistance properties
- Zinc Alloy+Acrylic plate,support 6 colors

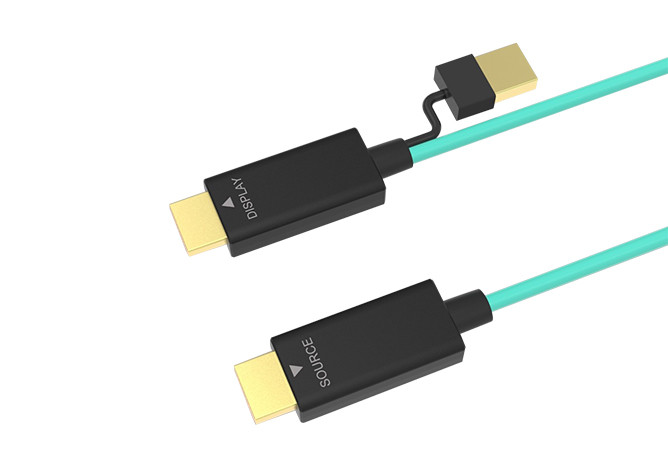

【HDMI: EPH3Q-v01 HDMI2.1-AOC】
- Pure Fiber Active Optical Cable
- The Module can be disassembled and replaced
- Support 150m long-ditance lossless transmission
- Support 10K/8K/4K120Hz as specified in HDMI 2.1
- Supports ALLM/VRR/QFT/DSC/QSM/Dynamic HDR as specified in HDMI 2.1
- Support 48Gbps bandwidth
- Supports HDCP 2.2/2.3、CEC
- High resistant with EMI and RFI
- No support Ethernet
- Easy to install and save space
- Widely used in home theaters, medical equipment systems, security monitoring, conference engineering, broadcasting systems, ships, etc.

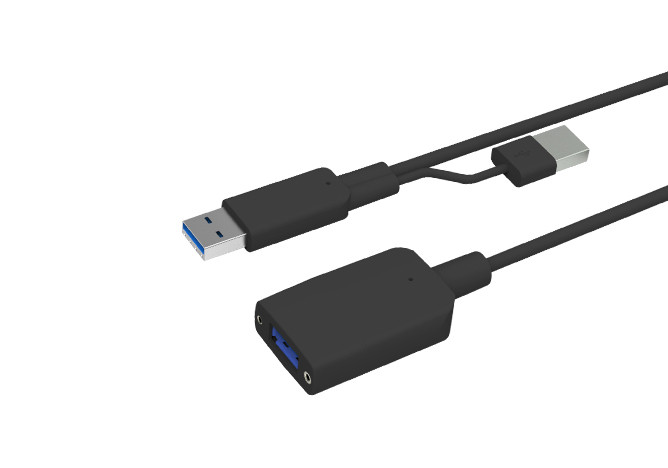

【USB: EPIUH24L-A0A4 USB3.2 Gen2-AOC】
- USB3 Vision compliant
- 10Gbps high-speed lossless transmission
- GUH24S compatible with USB2.0/1.1 devices
- GUH24L compatible with USB2.0
- AM/AF USB stick ,mouse, keyboard extension cable
- No need external power
- High resistant with EMI and RFI
- Drag chain test over 10 million times
- Support hot plug
- USB A Male to USB A Female Adapter
- The cable is soft and easy to wire
【USB: EPIUH52-A0B3 USB3.1 Gen1-AOC】
- USB3 Vision compliant
- USB3.1 Gen1 5Gbps
- Up to 20m
- Drag chain test 10 million times

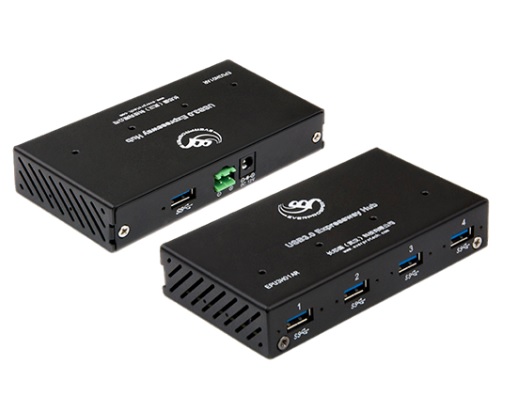

【USB: EPU3H01AR USB3.0 HUB】
- All the ports support USB3.0/2.0/1.1 devices
- When connecting to USB2.0 device, each port can provide independent bandwidth of 480Mbps
- No specialized driver is needed
- Two-color LED status indicator
- Support firmware upgrade
- Support USB3.0 active optical cable, and it can supply power for it

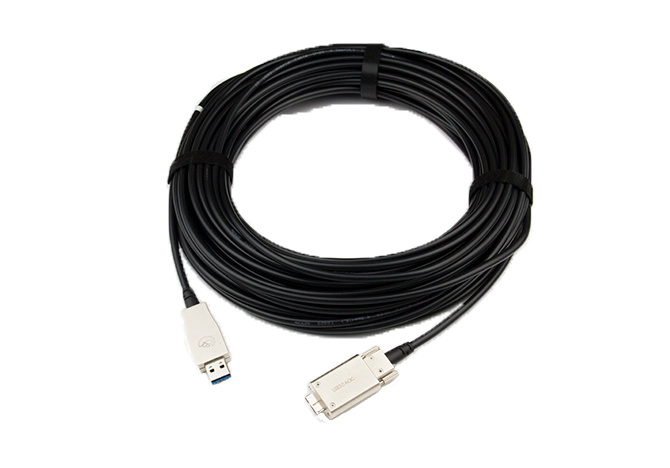

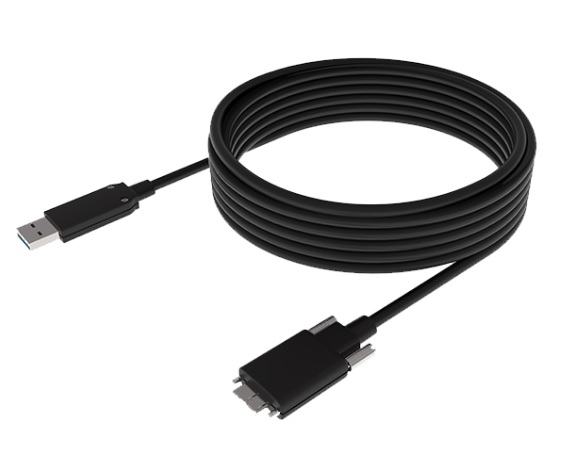

【USB: EPIUH62-A0B3 USB3.1 Gen1 Hybrid Cable(AM-MicroB)】
バスパワーに対応するため、従来のメタルと光ファイバを使ったハイブリッドケーブル
デバイス側のコネクタはUSB3.1 Micro-Bになっており、マシンビジョンカメラ、セキュリティカメラ、ストレージデバイスなどに最適
- ケーブル長:最大20m
- ケーブル径:4.8mm
- 曲げ半径:50mm
- 消費電力:0.94W
- 電源供給能力:900mA(5,10,15m),600mA(20m)/5V
- 伝送スピード:最大5Gbps
- コネクタ:USB3.1 Type-A to USB3.1 Micro-B

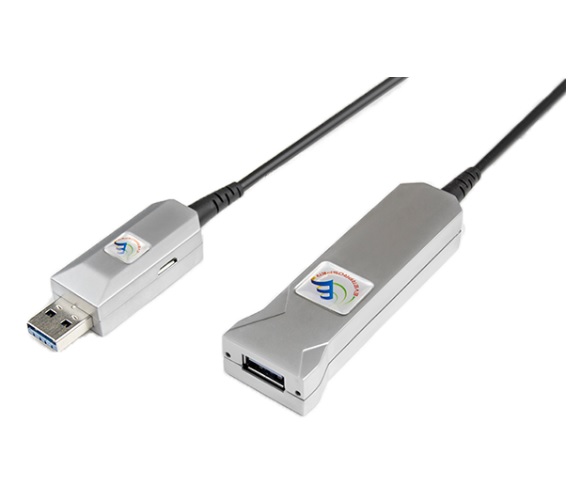

【USB: EPIUH21-A0A4 USB3.1 Gen1 Hybrid Cable】
オプションでバスパワーに対応するため、従来のメタルと光ファイバを使ったハイブリッドケーブル
USB2.0/1.1をUSB3.1に変換する機能を内蔵しているため、USB2.0/1.1を使用したデバイスにも対応可能
- ケーブル長:最大50m
- ケーブル径:4mm
- 曲げ半径:20mm
- 消費電力:2.15W
- 電源供給能力:900mA/5V
- 伝送スピード:最大5Gbps
- コネクタ:USB3.1 Type-Aオス to USB3.1 Type-Aメス

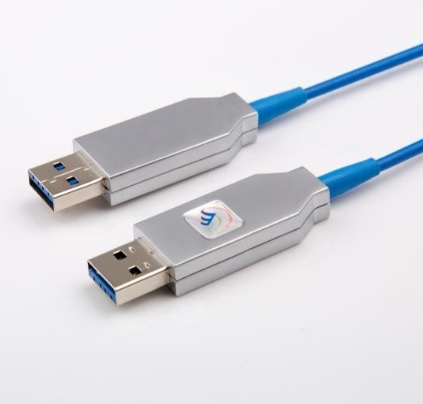

【USB: EPGUP13-A0A0 USB3.1 Gen1 Active Optical Cable】
従来のメタルから光ファイバに置き換えた、最大100mの長距離伝送が可能なアクティブ光USB3.1 Gen1ケーブル
EPU3D02AR/EPU3H01ARと組み合わせることで、USB2.0/1.1を使用したデバイスとの長距離伝送に対応した環境を構築可能
- ケーブル長:最大100m
- ケーブル径:3mm
- 曲げ半径:30mm
- 消費電力:2.15W
- 伝送スピード:最大5Gbps
- コネクタ:USB3.1 Type-A to USB3.1 Type-A

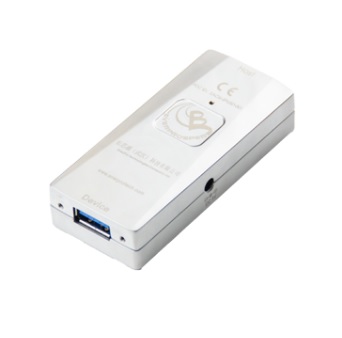

【USB: EPU3D02AR USB3.0 SuperTT Adapter】
USB2.0/1.1をUSB3.0に変換する機能を内蔵したドングルとハブ

- EPU3D02AR
- Comply with USB3.0 specification standard
- the maximum transmission rate is 5Gbps
- The port supports USB3.0/2.0/1.1 devices. When connecting with USB2.0 devices, it can provide 480Mbps bandwidth and support hot swap, which is easy to extend and maintain
- Support firmware upgrade

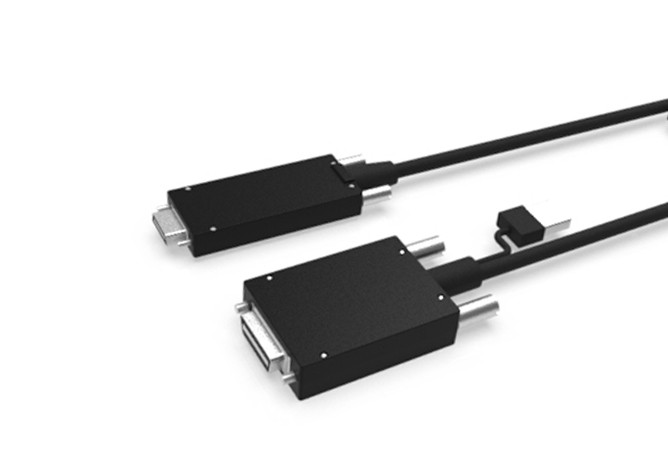

【Camera Link: EPICLH1 Camera Link 2.1-AOC】
- Meets the Camera Link 2.1 standard
- Bandwidth up to 5440Mbps
- Drag chain test over 10 million times
- Distance is up to 40 meters
- Optical fiber transmission is stable without attenuation, and resistant to bending
- High resistant with EMI and RFI
- The cable is high flex
- Support long-distance transmission
- Suitable for machine vision and industrial cameras
